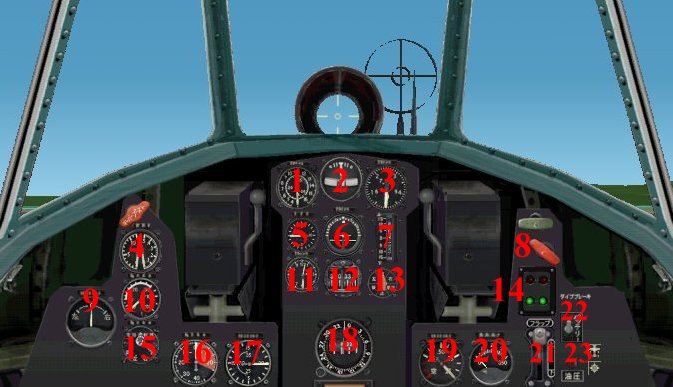

Instrument Panel

Aichi KYUKYUU KANBAKU D3A1, Val


 1. Air Speed Indicator                      2. Turn and Bank Indicator
 3. Altimeter                                4. Oil Pressure(L) and Fuel Pressure(R)
 5. Vertical Speed Indicator (VSI)           6. Attitude Indicator
 7. Prime VSI when dive                      8. Engine Start Switch
 9. Radio Wave Direction Finder (Eye Candy) 10. Oil Temperature Indicator
11. Clock                                   12. Magnetic Compass
13. Fuel Tank Selector                      14. Dive Brake, deployed when red
                                                            retracted when green
15. Engine Ignition and Magnetos Switch     16. Manifold Pressure Boost
17. Tachometer                              18. Magnetic Compass inside, and
                                                Gyrocompass on the outer scale
19. Fuel Tank Level Indicator               20. Cylinder Head Temperature
21. Flaps Switch                            22. Master Switch
23. Hydraulic Pressure Warning Light

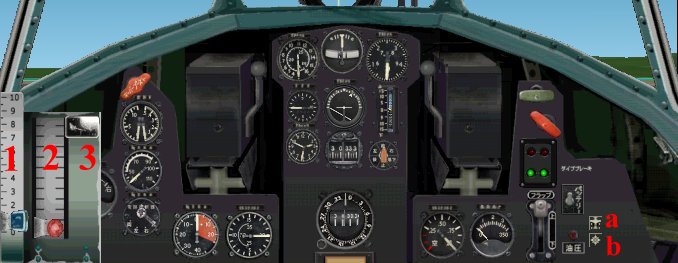

D3A1 Throttle Quadrant

 1. Throttle Control                        2. Mixture Control
 3. Propeller Pitch Control

 a. Toggle to On/Off the Throttle Quadrant. b. Toggle to On/Off the Flight Map

NB
How to operate Tail hook and Dive brake:

When Keyboard Command for CFS2 is set,
Press "Shift + H" to extend or retract the tailhook of the plane.
The tail hook is visually extended when flaps are fully extended.
To deploy or retract the dive brake, hit the key "D ".

When Keyboard Command for Flight Sim/CFS1 is set,
Press "Shift + G" to extend or retract the tailhook of the plane.
The tail hook is visually extended when flaps are fully extended.
To deploy or retract the dive brake, hit the key "/ ".
