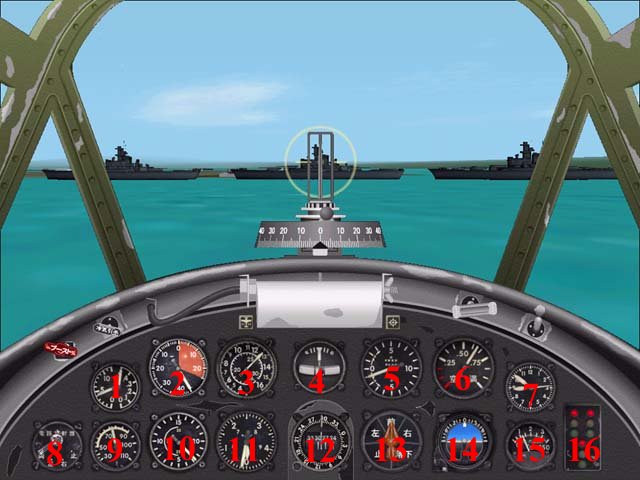

Instrument Panel

Nakajima B5N2 Kyunana Kanko, Kate

 1. Oil Pressure(L) and Fuel Pressure(R)    2. Manifold Pressure Boost
 3. Air Speed Indicator                     4. Turn and Bank Indicator
 5. Vertical Speed Indicator                6. Fuel Tank Level Indicator
 7. Clock                                   8. Engine Ignition and Magnetos Switch
 9. Oil Temperature                        10. Tachometer
11. Altimeter                              12. Magnetic Compass inside, and
                                               Gyrocompass on the outer scale
13. Fuel Tank Seleector                    14. Attitude Indicator
15. Cylinder Head Temperature              16. Landing Gear Position Lights

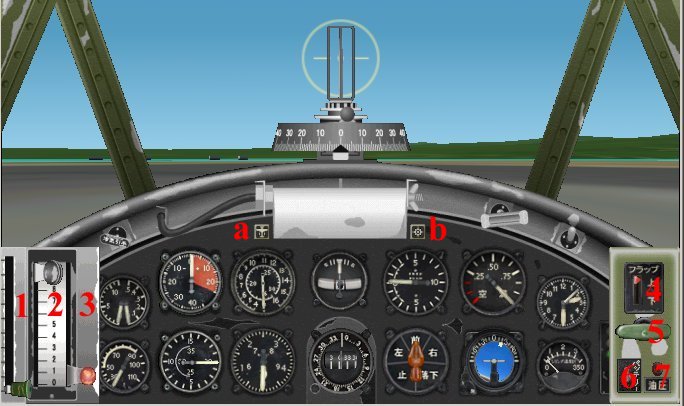

B5N2 Throttle Quadrant

 1. Throttle Control                        2. Propeller Control
 3. Mixture Control                         4. Flaps Position Indicator
 5. Engine Starter Lever                    6. Master Switch
 7. Hydraulic Pressure

 a. Toggle to On/Off the Throttle Quadrant. b. Toggle to On/Off the Flight Map

NB
How to operate Tailhook:

When Keyboard Command for CFS2 is set,
Press "Shift + H" to extend or retract the tailhook of the plane.
Additionally, if you like to see the tailhook up and down animation, then
Hit the key "D ".

When Keyboard Command for Flight Sim/CFS1 is set,
Press "Shift + G" to extend or retract the tailhook of the plane.
Additionally, if you like to see the tailhook up and down animation, then
Hit the key "/ ".
