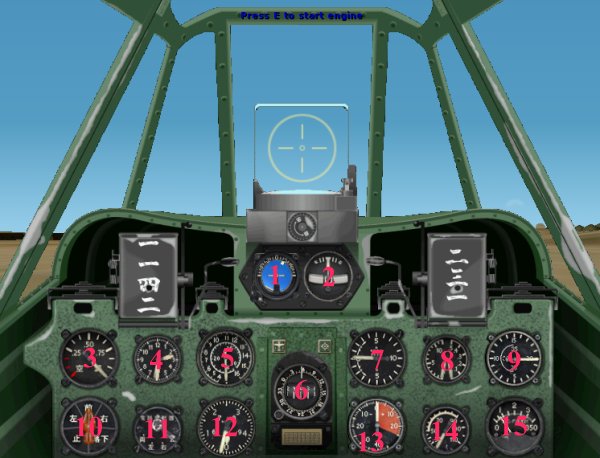

Instrument Panel

Mitsubishi A6M3 Reisen, Zero
 1. Attitude Indicator                      2. Turn and Bank Indicator
 3. Fuel Tank Level Indicator               4. Clock
 5. Airspeed Indicator                      6. Magnetic Compass inside, and
                                               Gyrocompass on the outer scale
 7. Vertical Speed Indicator                8. Oil Pressure(L) and Fuel Pressure(R)
 9. Tachometer                             10. Fuel Tank Selector
11. Engine Ignitionn and Magnetos Switch   12. Altimeter
13. Manifold Pressure Boost                14. Oil Temperature
15. Cylinder Head Temperature

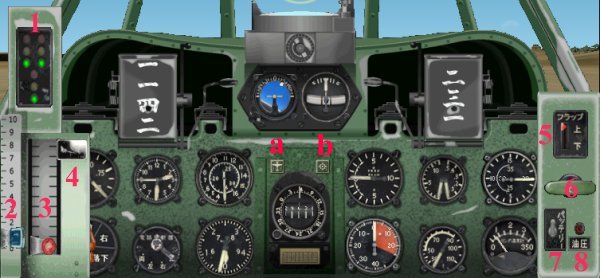

Mitsubishi A6M3 Reisen, Zero
 1. Landing Gear Position Lights            2. Throttle Control
 3. Mixture Control                         4. Propeller Control
 5. Flaps Switch                            6. Engine Start Switch
 7. Master Switch                           8. Hydraulic Pressure

 a. Toggle to ON/OFF the Throttle Quadrant  b. Toggle to ON/OFF the Flight Map

When Keyboard Command for CFS2 is set,
Press "Shift + H" to extend or retract the tailhook of the plane.
Hit the key "D ", if you like to see the tailhook up and down animation.

When Keyboard Command for Flight Sim/CFS1 is set,
Press "Shift + G" to extend or retract the tailhook of the plane.
Hit the key "/ ", if you like to see the tailhook up and down animation.

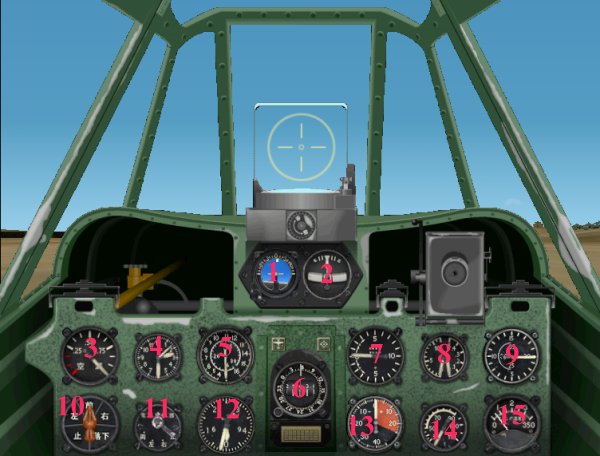

Instrument Panel

Mitsubishi A6M5c Reisen, Zero
 1. Attitude Indicator                      2. Turn and Bank Indicator
 3. Fuel Tank Level Indicator               4. Clock
 5. Airspeed Indicator                      6. Magnetic Compass inside, and
                                               Gyrocompass on the outer scale
 7. Vertical Speed Indicator                8. Oil Pressure(L) and Fuel Pressure(R)
 9. Tachometer                             10. Fuel Tank Selector
11. Engine Ignitionn and Magnetos Switch   12. Altimeter
13. Manifold Pressure Boost                14. Oil Temperature
15. Cylinder Head Temperature

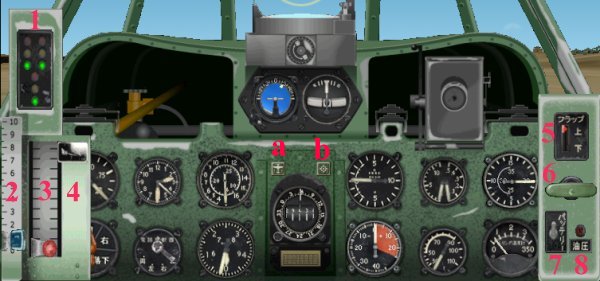

Mitsubishi A6M5c Reisen, Zero
 1. Landing Gear Position Lights            2. Throttle Control
 3. Mixture Control                         4. Propeller Control
 5. Flaps Switch                            6. Engine Start Switch
 7. Master Switch                           8. Hydraulic Pressure

 a. Toggle to ON/OFF the Throttle Quadrant  b. Toggle to ON/OFF the Flight Map

When Keyboard Command for CFS2 is set,
Press "Shift + H" to extend or retract the tailhook of the plane.
Hit the key "D ", if you like to see the tailhook up and down animation.

When Keyboard Command for Flight Sim/CFS1 is set,
Press "Shift + G" to extend or retract the tailhook of the plane.
Hit the key "/ ", if you like to see the tailhook up and down animation.
